Compact Mini Sewage Treatment Plant
Device Features
1. The industry pioneered three modes: "flushing", "irrigation", and "direct discharge", which can achieve automatic conversion.
2. The operating power of the whole machine is less than 40W, and the noise during night operation is less than 45dB.
3. Remote control, operation signal 4G, WIFI transmission.
4. Integrated flexible solar energy technology, equipped with utility and solar energy management modules.
5. One click remote assistance, with professional engineers providing services.
Device Parameters
|
Processing capacity(m3/d) |
0.3-0.5 |
1.2-1.5 |
|
Size(m) |
0.7*0.7*1.26 |
0.7*0.7*1.26 |
|
Weight(kg) |
70 |
100 |
|
Installed power |
＜40W |
＜90W |
|
Solar power |
50W |
|
|
Sewage Treatment Technique |
MHAT + contact oxidation |
|
|
Effluent quality |
COD<60mg/l,BOD5<20mg/l,SS<20mg/l,NH3-N<15mg/l,TP<1mg/l |
|
|
Resourcefulness criteria |
Irrigation/toilet flushing |
|
Remarks: The above data are for reference only. The parameters and model selection are mainly confirmed by both parties, and can be used in combination. Other non-standard tonnages can be customized.
Flow Chart of Process
Application Scenarios

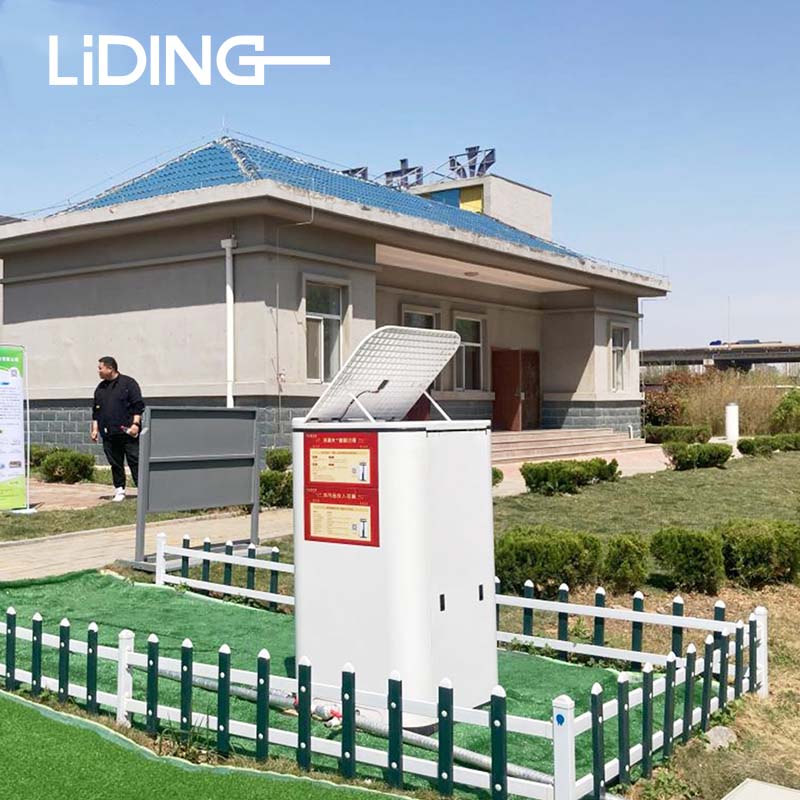

Suitable for small scattered sewage treatment projects in rural areas, scenic spots, farmhouses, villas, chalets, campsites, etc.
