Rural integrated sewage treatment
Equipment Features
1. High Degree of Integration, Flexible Selection: Daily treatment capacity of 5-100 tons, flexible selection, equipment will be integrated in the biochemical treatment unit in the glass fiber reinforced plastic tank, factory standardized assembly and control procedures loaded, the construction cycle is short, the site does not need to mobilize large-scale manpower and material resources, equipment construction can be stable operation.
2. Advanced Technology, Good Treatment Effect: Equipment from Japan, Germany process, combined with the actual situation of China's village sewage independent research and development, the use of fillers with a large surface area, improve the volume load, greatly reducing the footprint, strong operational stability, good treatment effect, the effluent can be stable to standards.
3.?Degradable Macromolecular Organic Matter:?The front anoxic section will hydrolyze macromolecules into small molecules, improve the biochemical properties, organic degradation more thoroughly.
4.?Low Energy Consumption and Low Noise:?The aeration adopts Sino-Japanese joint venture fan, with large air volume, low energy consumption and low noise.

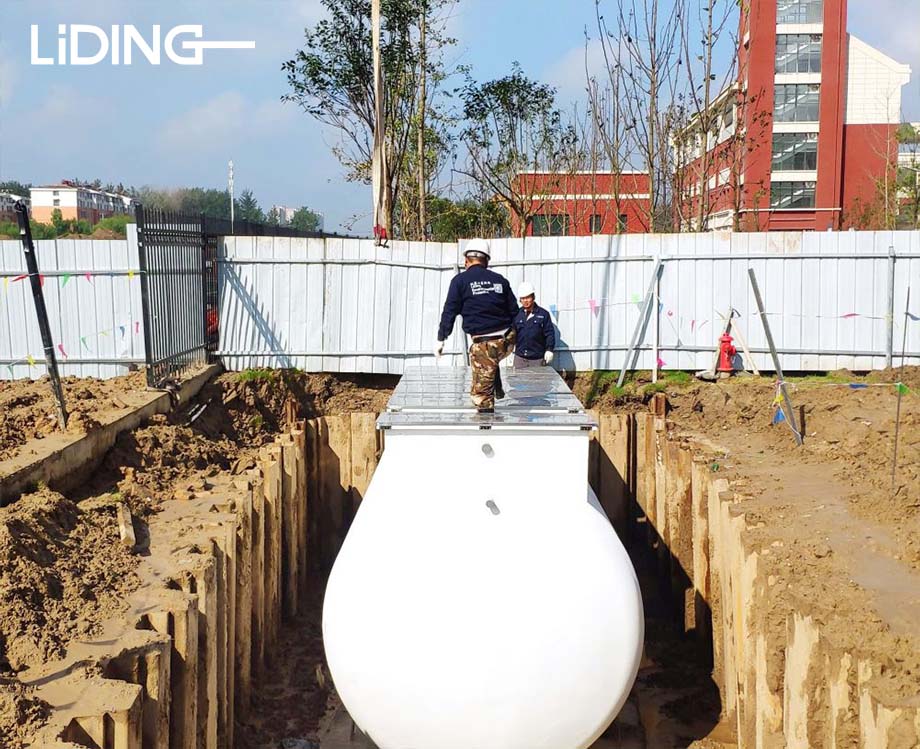

5. Quick construction, Small Footprint:?Factory production of equipment, reduce the construction period, tons of water covers an area of 0.5-3 square meters, all buried construction.
6. Standard with Internet of Things Technology, Cloud Platform Management:?Take mobile Internet + environmental services model.
Equipment Parameters
|
Model |
Processing capacity（m3/d） |
Size L*B(m) |
Weight（t） |
Shell thickness（mm） |
Installed power（KW） |
|
SC4 |
4 |
3.7x1.7 |
1.6 |
8-9 |
0.31 |
|
SC10 |
10 |
4.8x2.6 |
2.1 |
8-10 |
0.44 |
|
SC25 |
25 |
6.5x2.8 |
3.6 |
8-10 |
0.62 |
|
SC40 |
40 |
7.8x3.2 |
4.5 |
9-11 |
0.85 |
|
SC50 |
50 |
9.0x3.5 |
5.2 |
10-12 |
0.88 |
|
SC65 |
65 |
11.0x3.5 |
6.5 |
10-12 |
1.15 |
|
Inlet water quality |
Municipal, township, rural, toilet and other conventional domestic sewage |
||||
|
Effluent quality |
National Standard Grade A |
||||
Note: The above data are for reference only, parameters and selection are subject to confirmation by both parties, combinations can be used, other non-standard tonnage can be customized.
Application Scenarios
The equipment is used in beautiful rural construction, scenic spots, temples, farmhouses, high-speed service areas, gas stations, posts, enterprises, schools and other sewage treatment projects.
